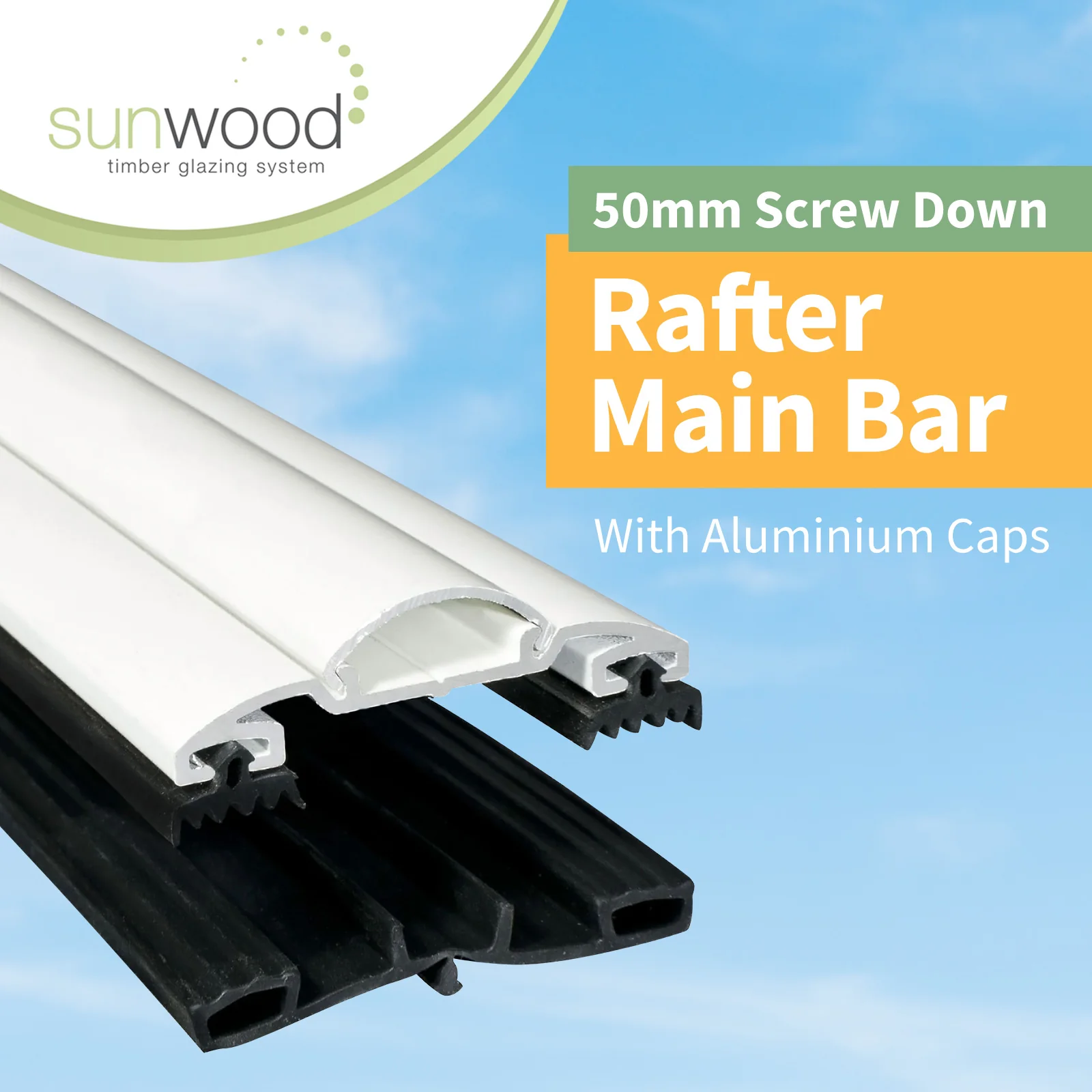

50mm Main Glazing Bar from Sunwood

(Choice of colour and length)

Screw-Down Rafter Gasket with Aluminium Cap

Part of the high quality, maintenance-free, Sunwood Timber Glazing System. Attractive and strong aluminium extrusion with tough powder-coated finish and long-lasting EPDM rubber gaskets.

Retro-fitted to 2" rafters on existing 5-40° pitched timber roofs, the 50mm Rafter Main Bar and other Sunwood components can encase and seal problem leak areas while also breathing a new lease of life into the roof. Sunwood is equally effective on new instalations too, offering an attractive, low-maintenance, long-life capping solution.

Features & Benefits

• Any Glazing - use with glass or polycarbonate of any thickness
• High Side EPDM Gaskets - compreses onto glazing for weather-proof seal
• EPDM Base Gasket - acts as a seat and seal for glazing
• Removable Central Pip - use with grooved or non-grooved rafters
• Strong and lightweight - quality aluminium extrusion
• Quality Powder-Coating - durable, consistent finish
• Flexible System - fits many roof designs and sizes
• Fully-Serviceable - Sunwood components can be easily removed if required
• Maintenance-Free - no annual painting required
• Designed to Integrate - neatly fits other Sunwood products
• Easy-Fit System - designed to ease installation
• 5 Year Guarantee - long product guarantee

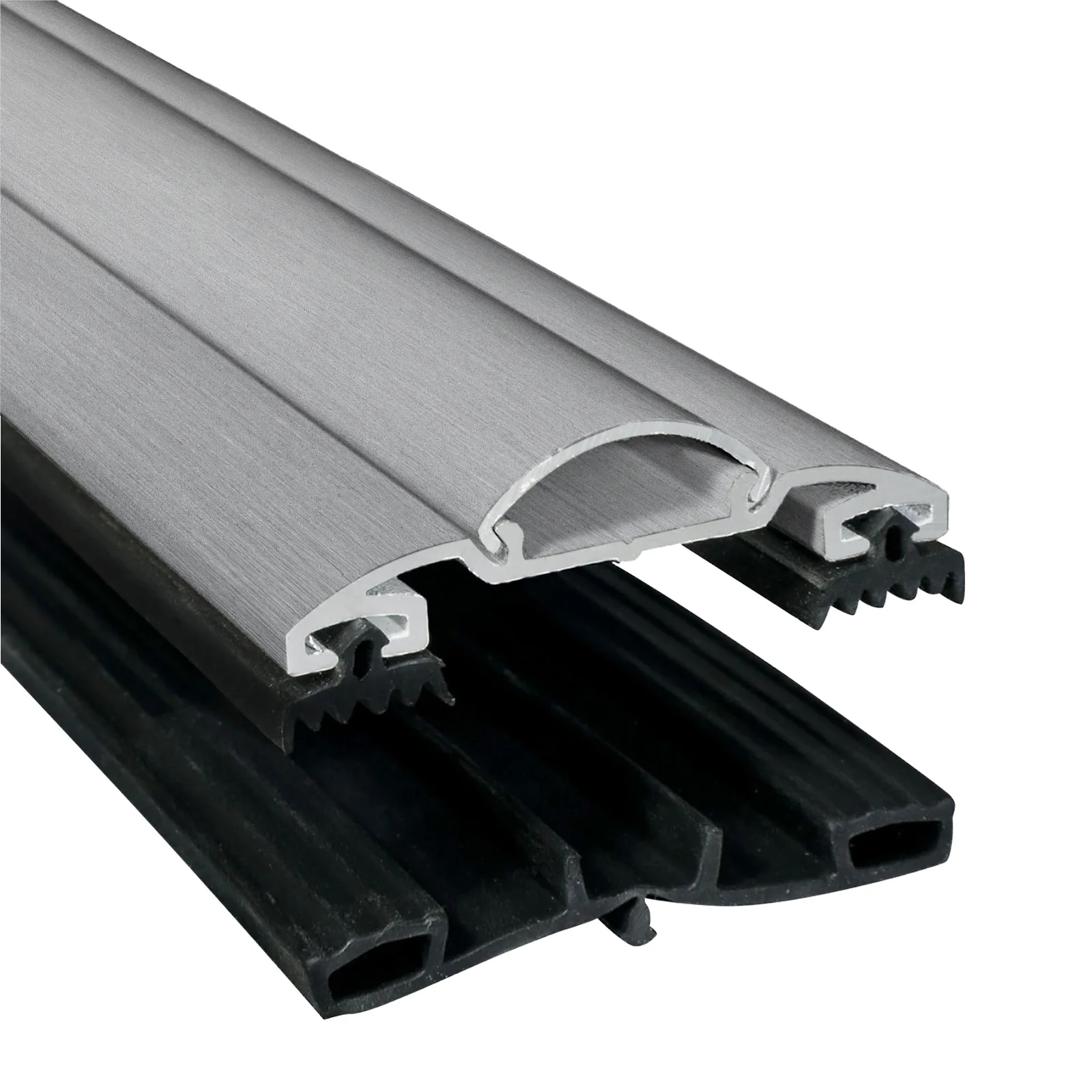

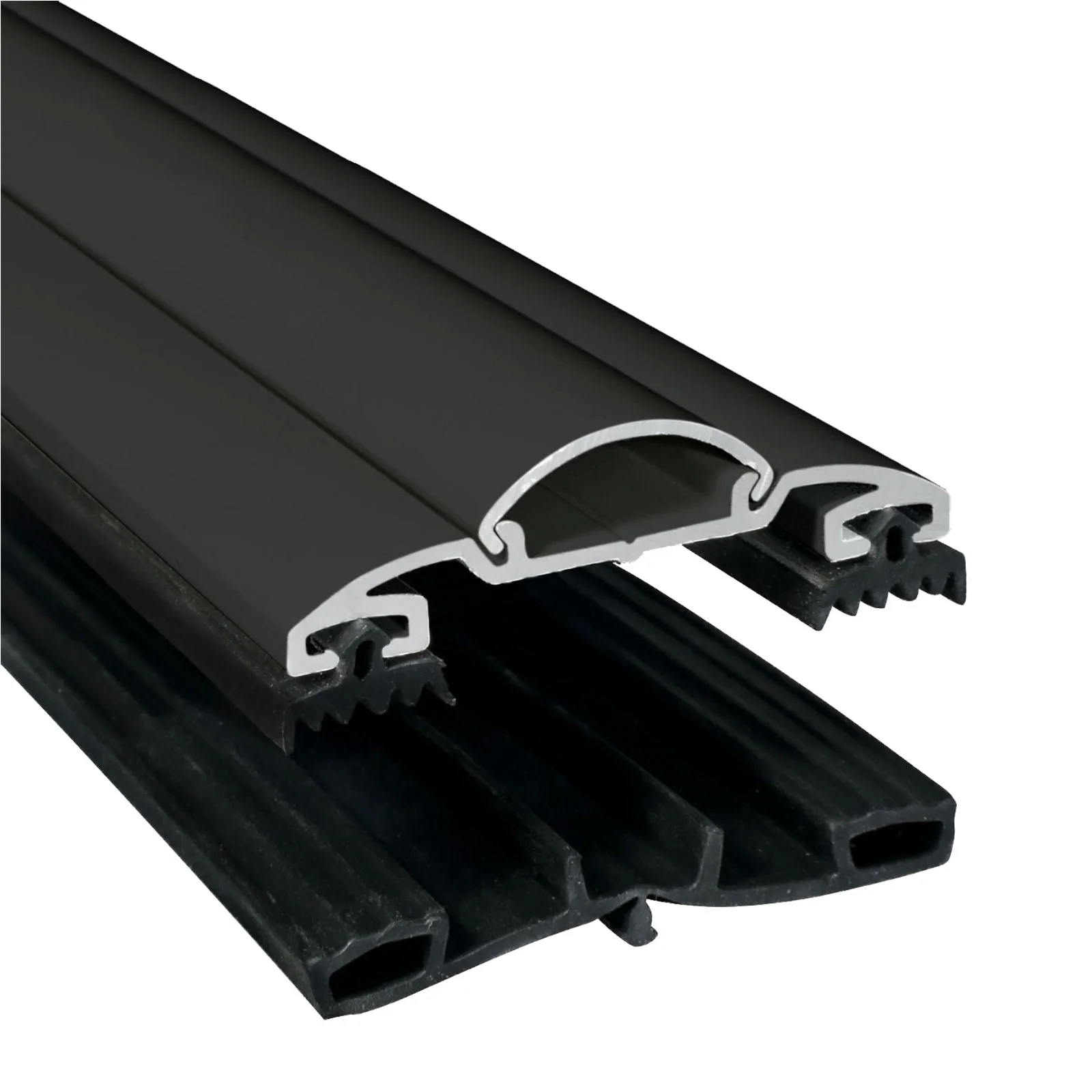

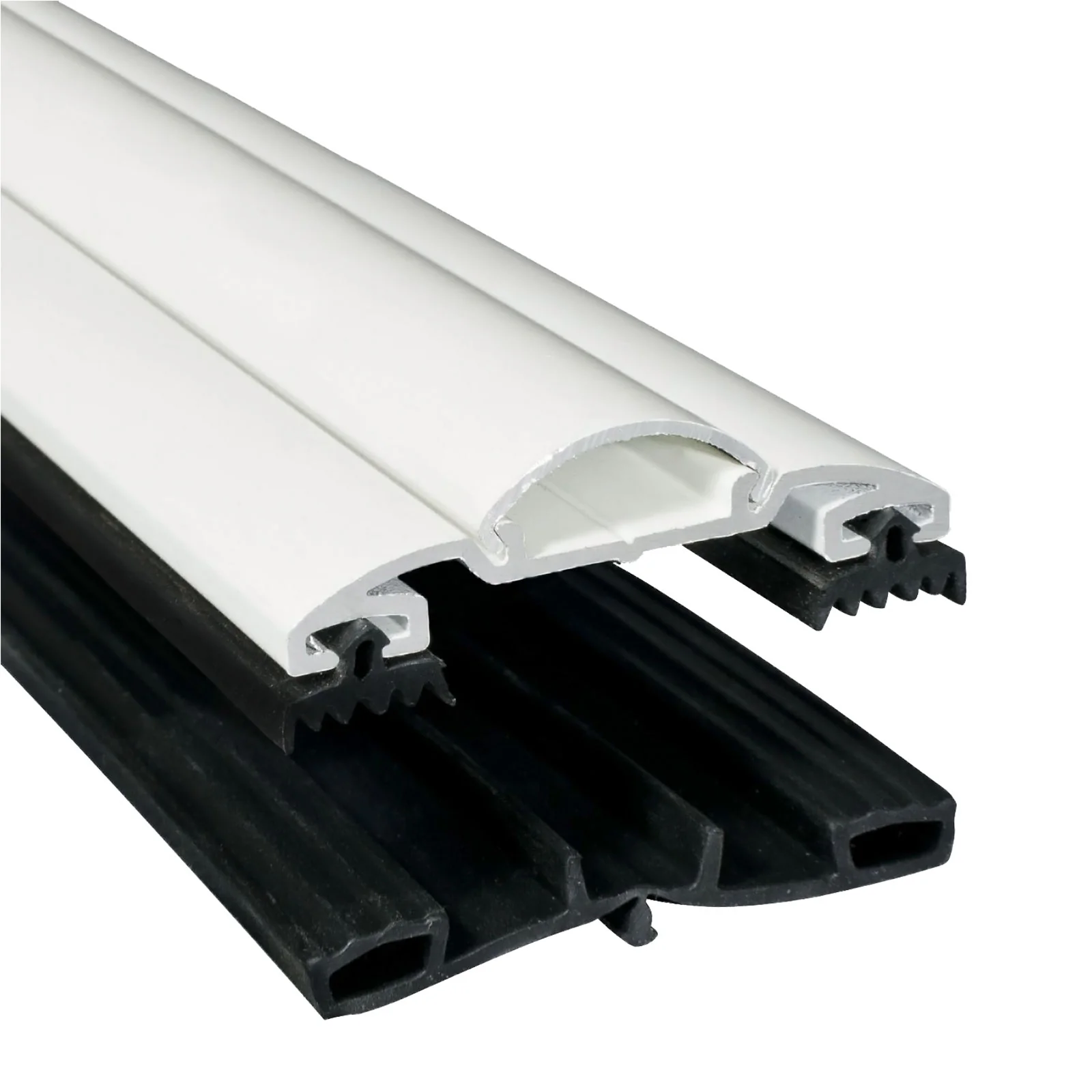

This Screw-Down rafter bar includes powder-coated aluminium 50mm Rafter Main Bar Top Cap with detachable Cover Cap to conseal and protect fixings. Rafter Main Bar incorporates integrated High Side EPDM Rubber Gasket for water-tight seal against top side of glazing and a separate EPDM Base Gasket (with removable central pip) that is fixed to timber rafter to act as a seat and seal on underside of glazing.
